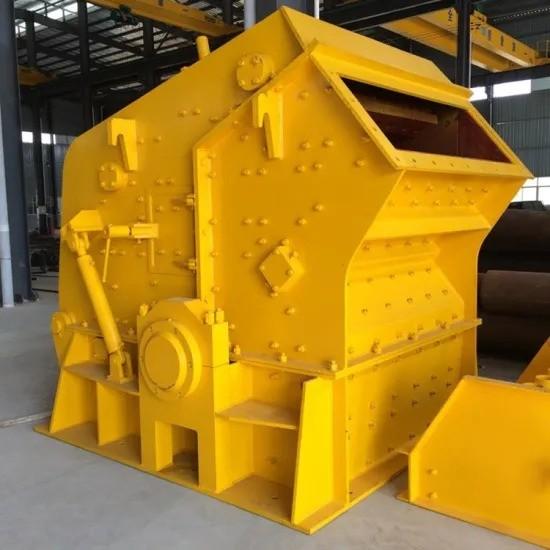

PCD1212 Coal Limestone Hammer Mill Crusher
Technical Parameters
Model: PCD1212
Max Feed Size: 200mm
Production Capacity Of Clinker: 60-100t/h
Production Capacity Of Limestone: 70-110t/h
Average Discharge Size: 3-5mm
Motor Power: 132kw
Technical Parameters Of PCD Serial
| Model | Max feed
(mm) | Treat capacity(T/H) | Average
Discharge granularity
(mm) | Power
(kw) | Dimension(mm) |
| Clinker | Limestone |
| PC-D-8040 | <80 | 15~20 | 20~25 | 3 | 37 | 1395*1506*1390 |
| PC-D-8080 | <80 | 25~30 | 30~40 | 3 | 45 | 1395*1906*1390 |
| PC-D-9080 | <100 | 40~45 | 45~50 | 3 | 45 | 1754*1906*1659 |
| PC-D-9010 | <100 | 45~50 | 50~55 | 3 | 55 | 1754*2176*1659 |
| PC-D-1010 | <150 | 50~60 | 60~70 | 3~5 | 90 | 2138*2590*2021 |
| PC-D-1210 | <200 | 60~80 | 70~90 | 3~5 | 110 | 2524*2716*2325 |
| PC-D-1212 | <200 | 60~100 | 70~110 | 3~5 | 132 | 2524*2866*2325 |
| PC-D-1414 | <200 | 70~150 | 70~160 | 5~8 | 200 | 2550*3120*2670 |
| PC-D-1616 | <200 | 100~210 | 110~260 | 5~8 | 250 | 2922*3564*2900 |
| PC-D-1818 | <200 | 120~270 | 130~310 | 5~10 | 315 | 3121*3754*3150 |
Profile
The series of crushers combines the technical advantages of crushing equipment at home and abroad, through development and improvement to make the structure design more optimized. Reasonable three-room broke chamber combination, novel regulation mechanism, the product size is fine and even due to effective control, convenient maintenance equipment, and the hammerhead and the sieve plate can be replaced conveniently.
Advantages
1, High efficiency and energy saving: the motor energy consumption is reduced by 30% under the same output;
2, Ultra-fine crushing: newly add granularity regulator to ensure that 85% output of discharge size less than or equal to 3mm
3, Super long lifespan: New type of quality vanadium molybdenum multi-element alloy hammerhead can be turned for use, thus the average service life is increased by 3-4 times.
Product Usage
Usage of PCD series ultrafine energy saving crusher: Widely used to treat medium hardness material such as limestone, cement clinker, shale, dolomite, granite, gypsum, mixed materials, etc.
